Axial Vent HR Line

A wheel designed to withstand, endure, and maintain performance in every operation.

High resistance, efficiency, and safety
Operates continuously at temperatures up to 140°C

Air Solutions Portfolio
Technical Datasheet

What sets the HR Axial Line apart?

Resistance to high temperatures

Special bearings

More robust impeller

Robust industrial application

High-flow axial design

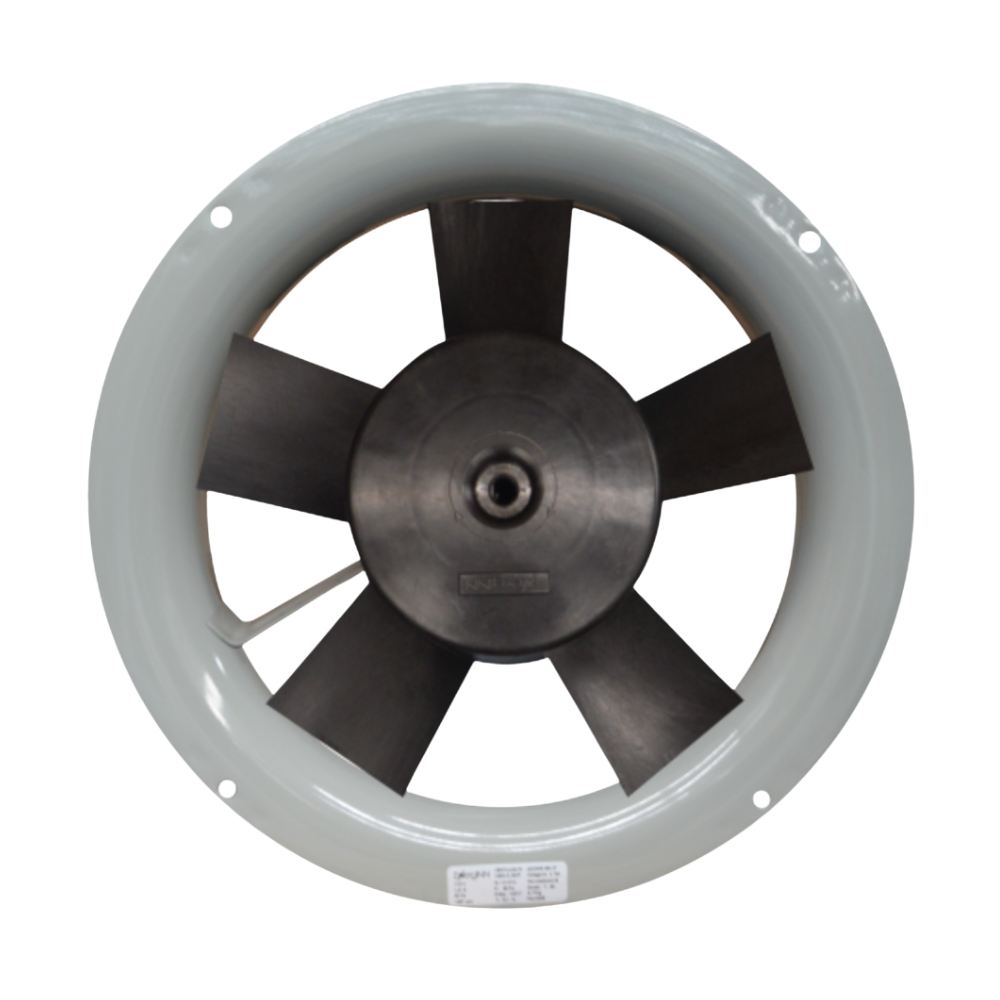

2CC2HR 204-1F AXIAL VENT

Diameter: 202 mm / 8”
Airflow: 0.243 m³/s
Power: 0.063 kW
Sound pressure level: 62 dB(A)
Voltage: 110 V – 1,800 RPM
Rated current: 0.80 A
Gross weight: 4.5 kg

High-resistance nylon impeller
2-year warranty

View technical datasheet

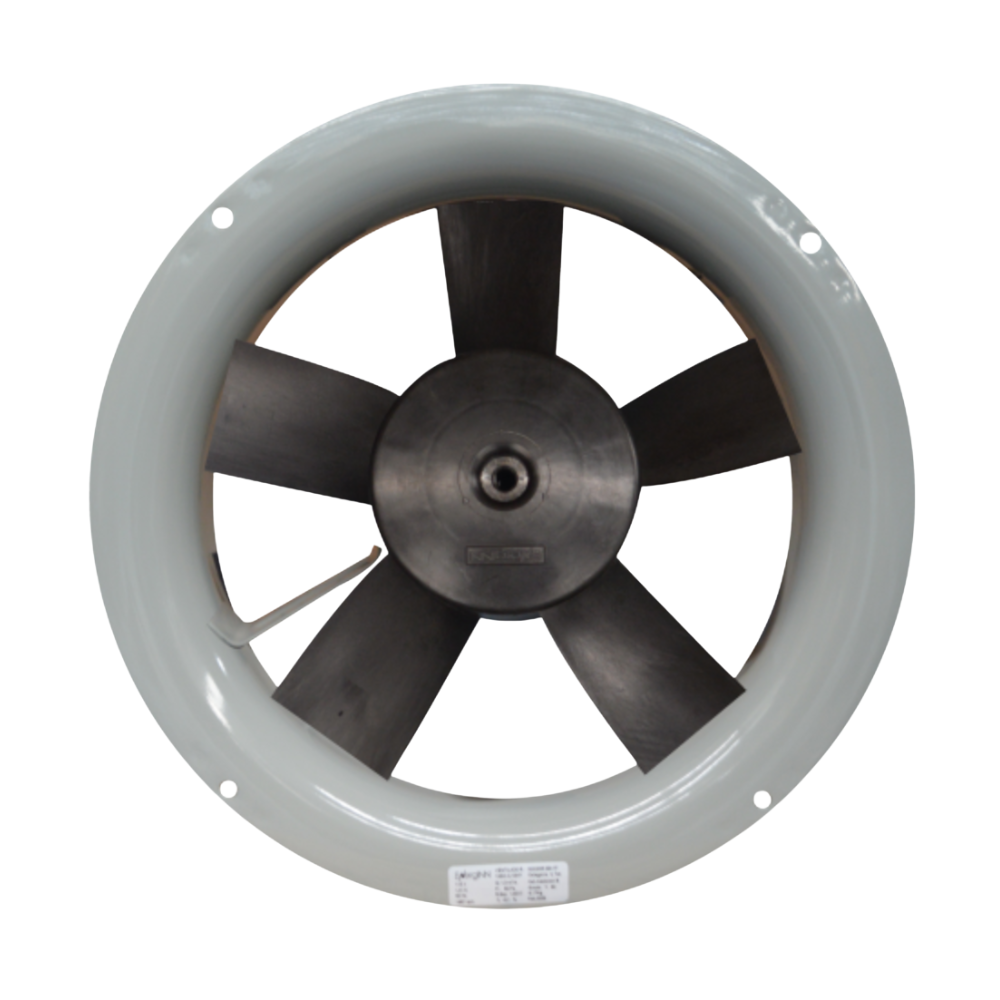

2CC2HR 254-1F AXIAL VENT

Diameter: 250 mm / 10”
Airflow: 0.317 m³/s
Power: 0.070 kW
Sound pressure level: 62 dB(A)
Voltage: 110 V – 1,800 RPM
Rated current: 0.82 A
Gross weight: 4.5 kg

High-resistance nylon impeller
2-year warranty

View technical datasheet

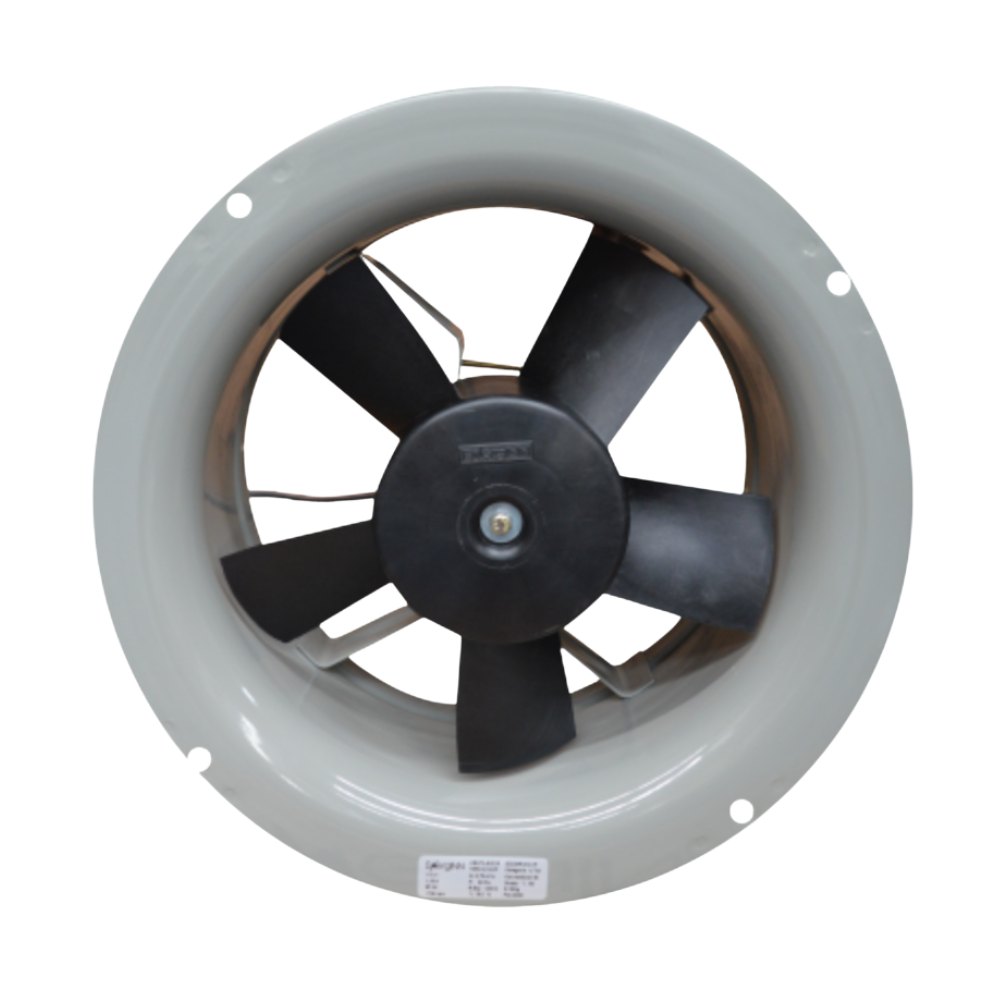

2CC2HR 314-1F AXIAL VENT

Diameter: 314 mm / 12”
Airflow: 0.790 m³/s
Power: 0.108 kW
Sound pressure level: 65 dB(A)
Voltage: 110 V – 1,800 RPM
Rated current: 1.15 A
Gross weight: 5 kg

High-resistance nylon impeller
2-year warranty

View technical datasheet

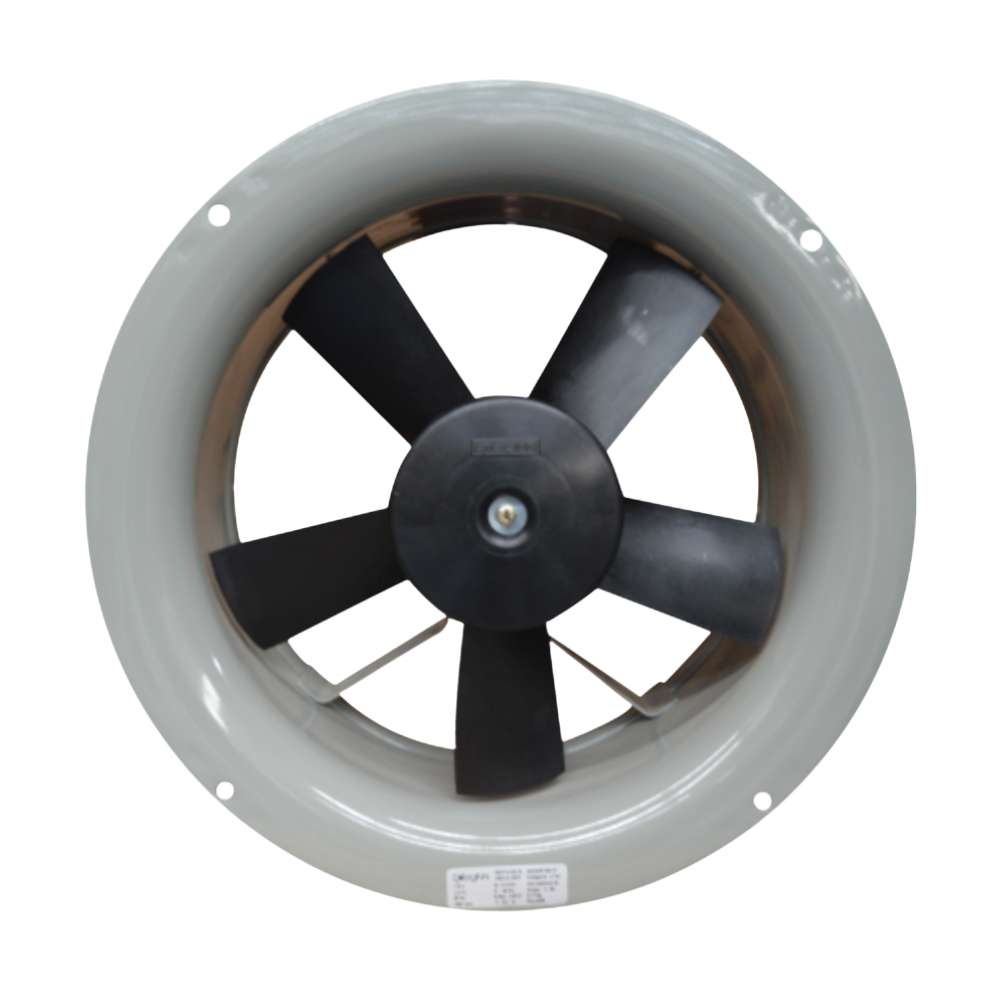

2CC2HR 354-1F AXIAL VENT

Diameter: 350 mm / 14”
Airflow: 1.000 m³/s
Power: 0.138 kW
Sound pressure level: 68 dB(A)
Voltage: 110 V – 1,800 RPM
Rated current: 1.41 A
Gross weight: 6 kg

High-resistance nylon impeller
2-year warranty

View technical datasheet

2CC2HR 404-1F AXIAL VENT

Diameter: 400 mm / 16”
Airflow: 1.400 m³/s
Power: 0.228 kW
Sound pressure level: 74 dB(A)
Voltage: 110 V – 1,800 RPM
Rated current: 2.30 A
Gross weight: 6.5 kg

High-resistance nylon impeller
2-year warranty

View technical datasheet

Why install industrial and commercial ventilation solutions?

Renews the air

Controls temperature and humidity.

Maintains a constant airflow in enclosed spaces.

Removes suspended particles.

Protects machinery and processes.

Creates safe and efficient work environments.

Ideal for industrial environments


General Features of HR Axial Ventilation

Axial fans are designed to move air in a straight line, that is, in a direction parallel to the fan’s axis.

The main feature of EnergINN fans is the aerodynamic design of their blade wheels, which allows them to move large volumes of air, making them an excellent option for improving air circulation in different spaces.

Our technology is designed to transform various environments, making them safer, healthier, and more productive.
