Axial Vent Standard Line

Air intake and extraction.

It renews the air 24 hours a day in commercial and industrial spaces. It injects and/or extracts air, gases, vapors, dust, or impurities.

What sets the Axial Vent Standard Line apart?

Protected against water splashes.

Sealed against dust

Protected against moisture and corrosion

Resistant to mechanical stress

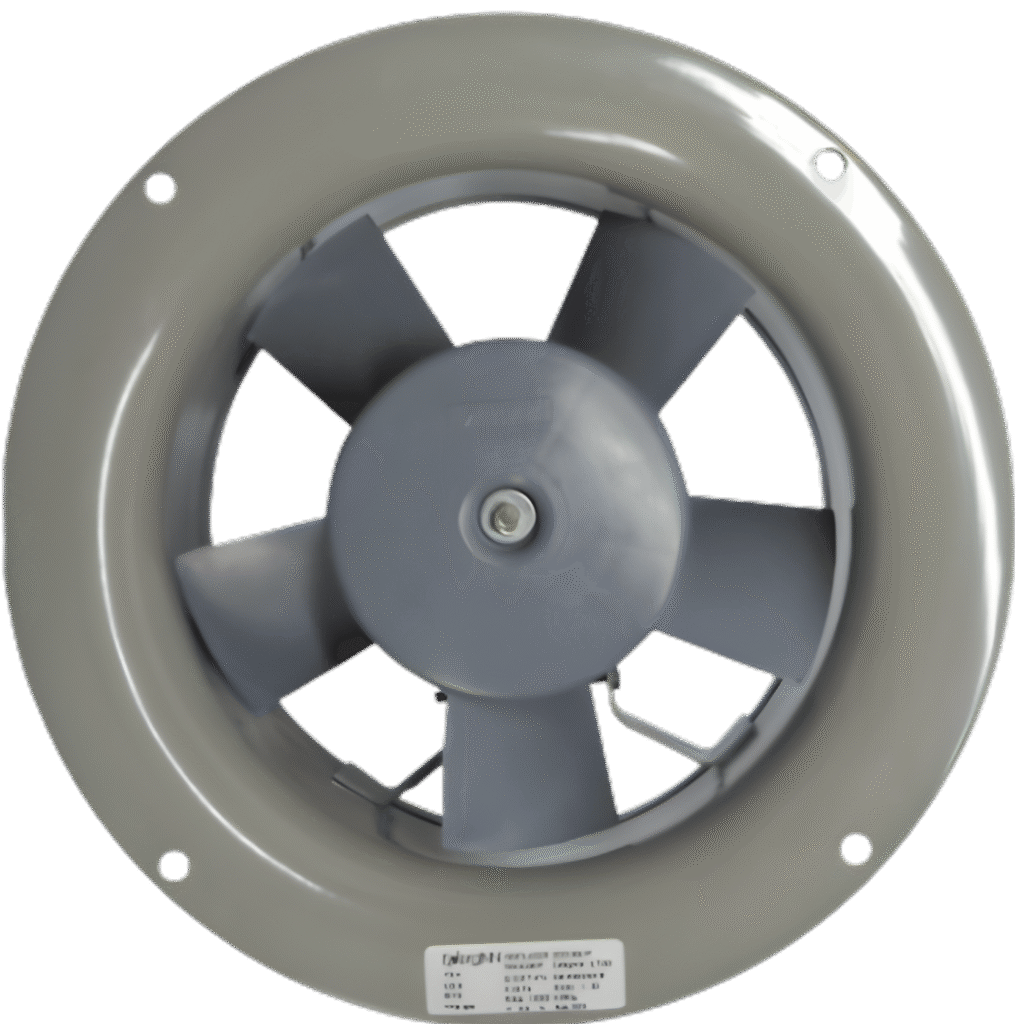

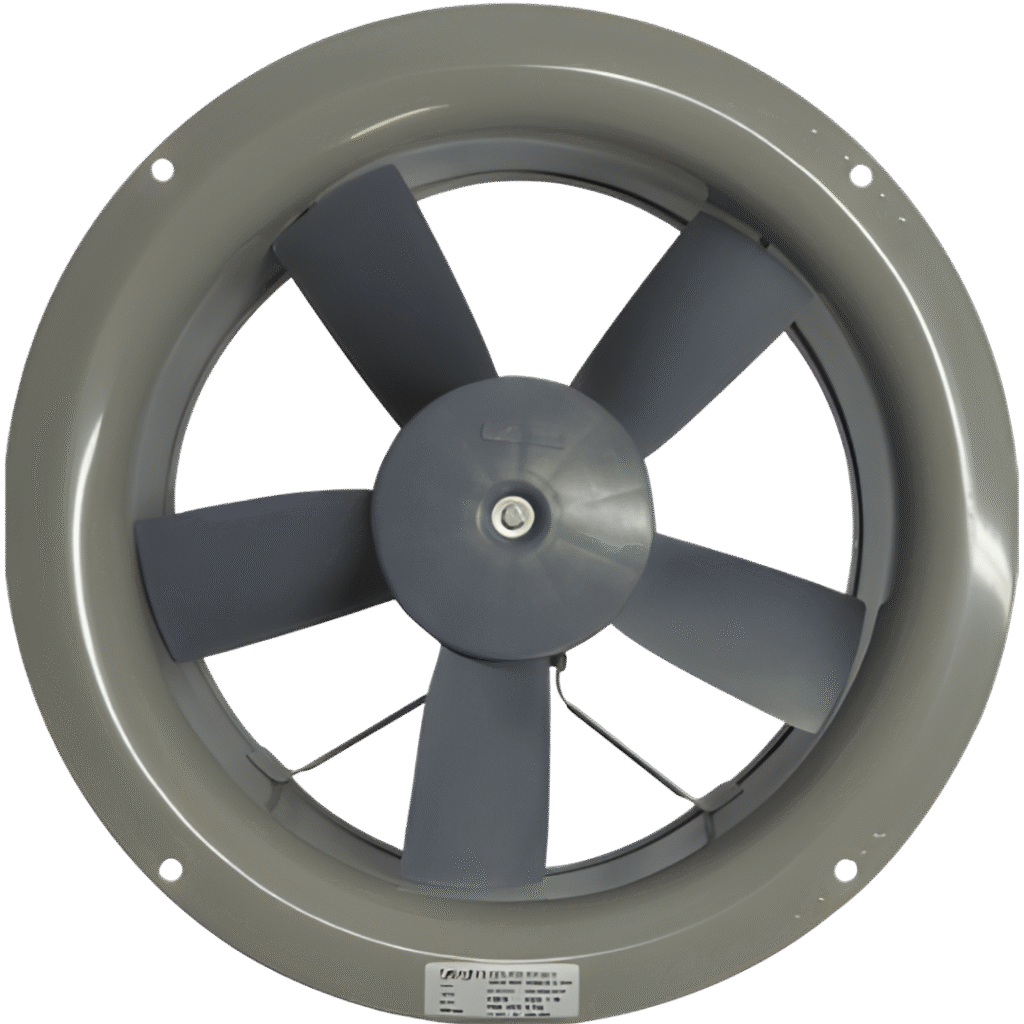

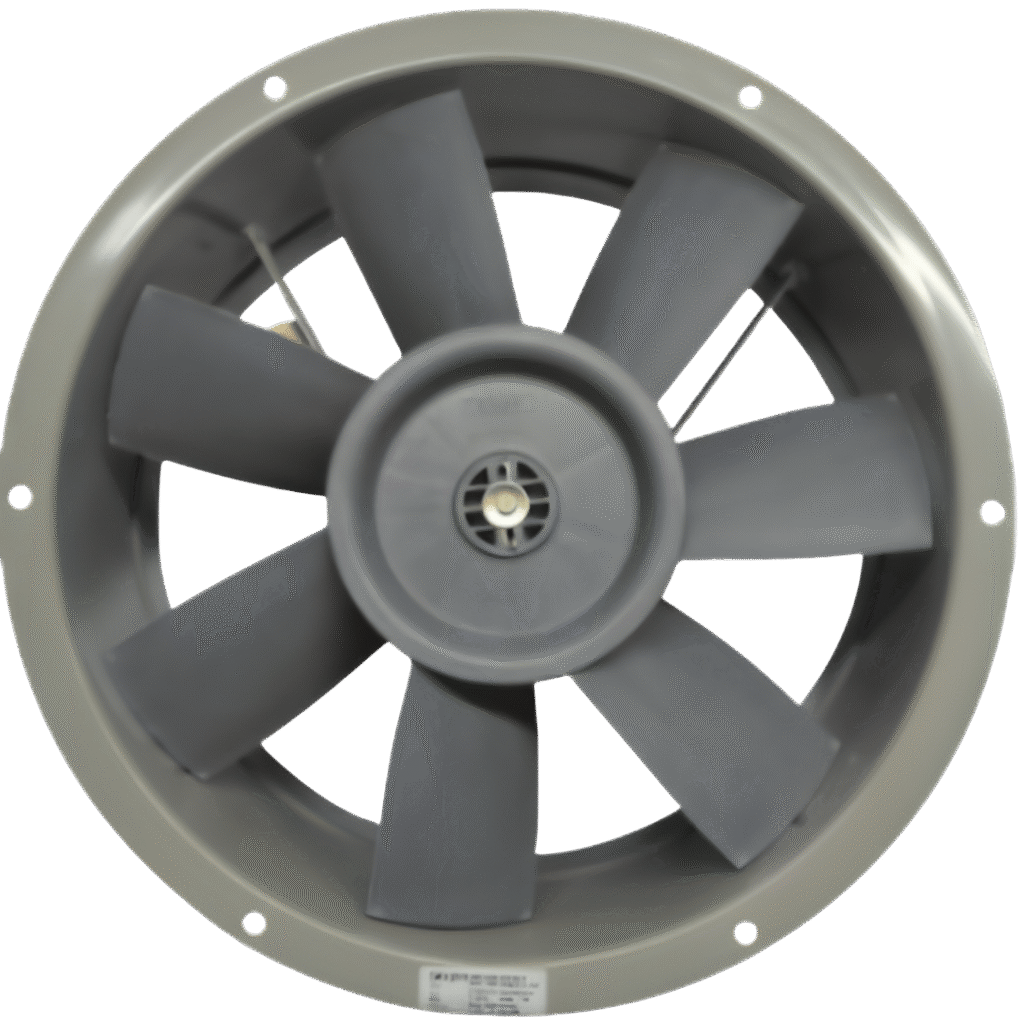

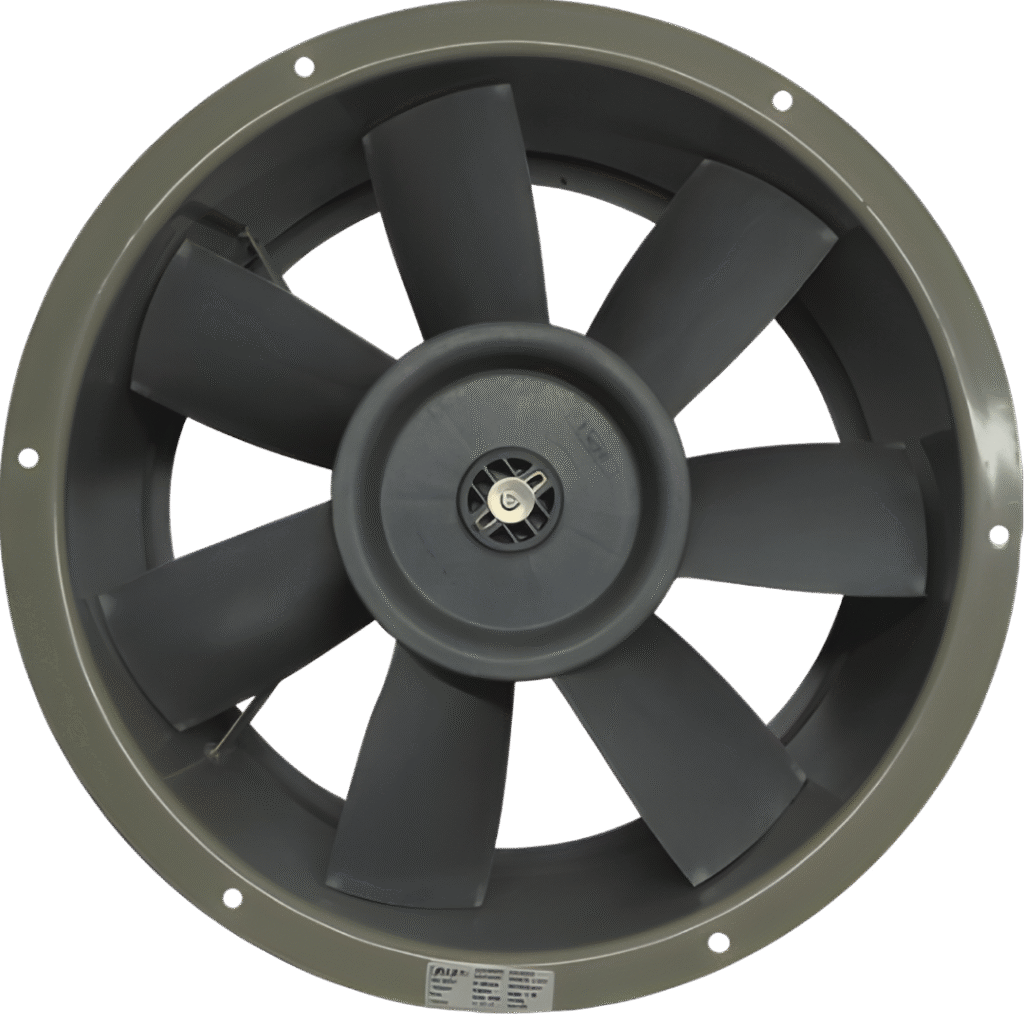

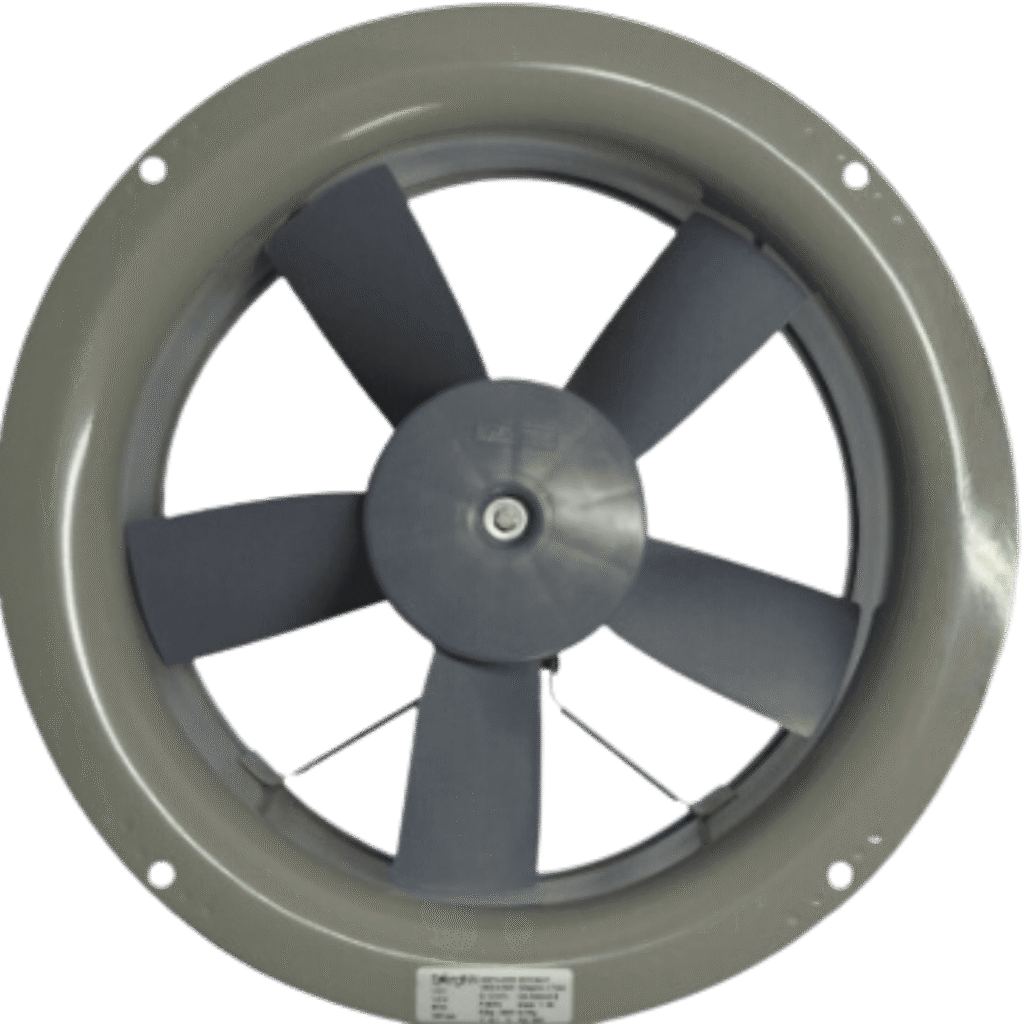

2CC2204-1F AXIAL VENT

Supply or exhaust function.
Suitable for moving air, gases, and particulate matter.

Technical Features

Diameter: 202 mm / 8”
Airflow: 0.243 m³/s
Power: 0.063 kW
Sound pressure level: 62 dB(A)
Voltage: 110 V – 1800 RPM
Rated current: 0.80 A
Gross weight: 4 kg
Plastic impeller
2-year warranty

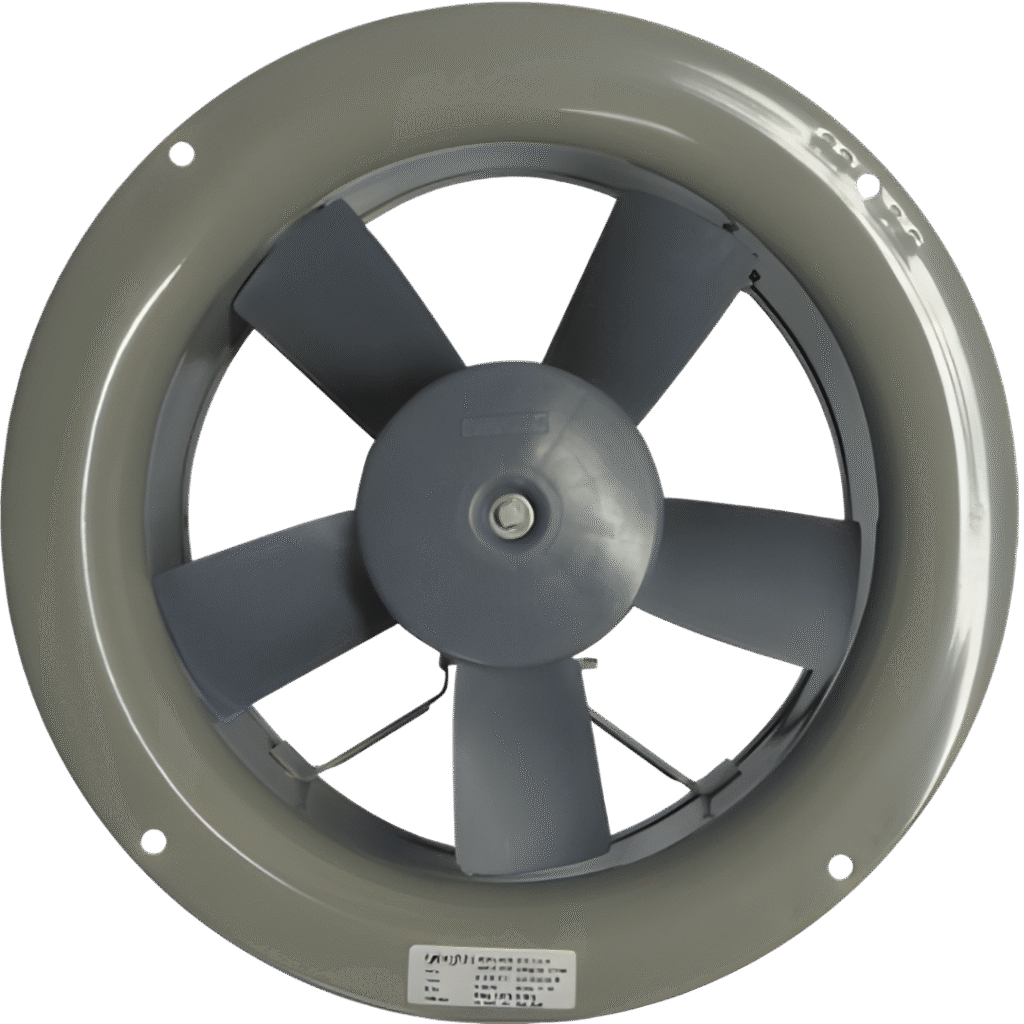

2CC2254-1F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Features

Diameter: 250 mm / 10”
Airflow: 0.317 m³/s
Power: 0.070 kW
Sound pressure level: 62 dB(A)
Voltage: 110 V – 1800 RPM
Rated current: 0.82 A
Gross weight: 4 kg
Plastic impeller
2-year warranty

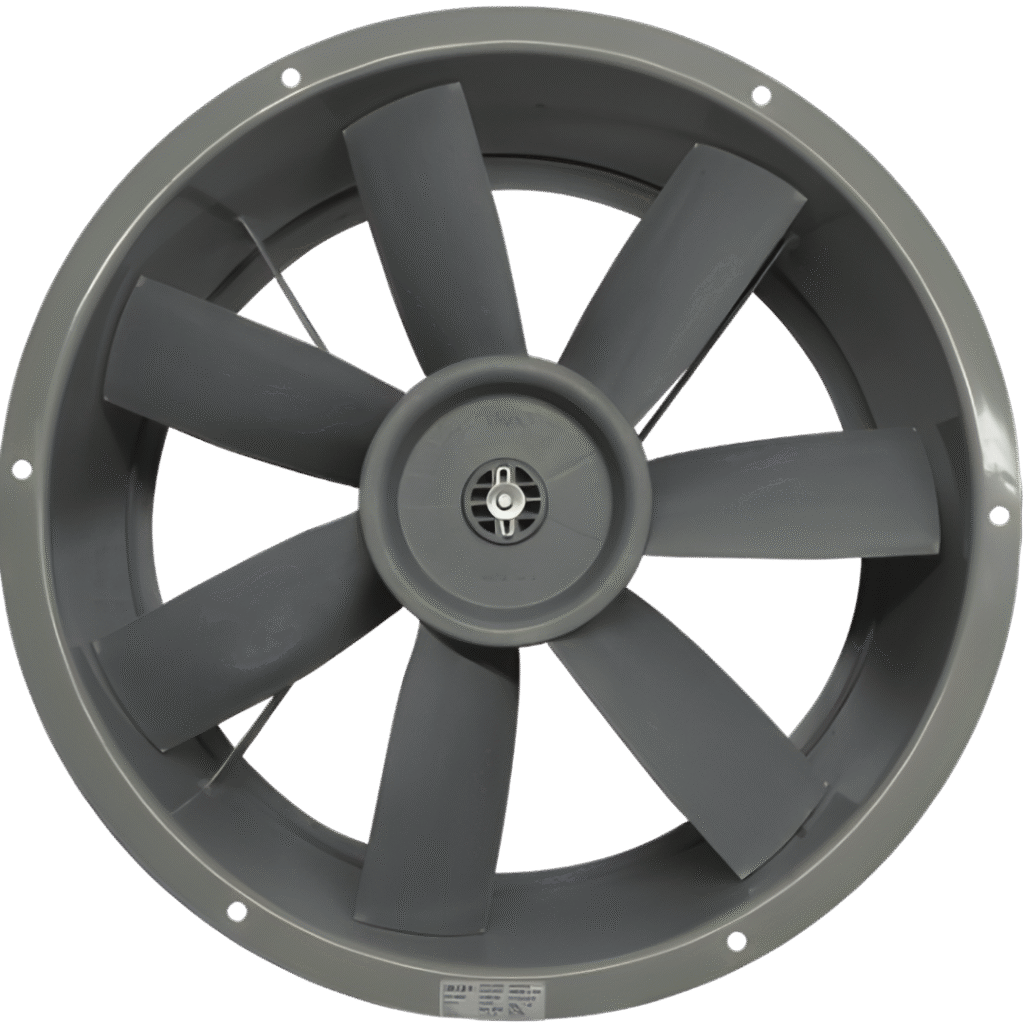

2CC2314-1F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Features

Diameter: 314 mm / 12”
Airflow: 0.790 m³/s
Power: 0.108 kW
Sound pressure level: 65 dB(A)
Voltage: 110 V – 1800 RPM
Rated current: 1.15 A
Gross weight: 5 kg
Plastic impeller
2-year warranty

2CC2354-1F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Features

Diameter: 350 mm / 14”
Airflow: 1.000 m³/s
Power: 0.138 kW
Sound pressure level: 68 dB(A)
Voltage: 110 V – 1800 RPM
Rated current: 1.41 A
Gross weight: 6 kg
Plastic impeller

2-year warranty

2CC2404-1F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 400 mm / 16”
Airflow: 1.400 m³/s
Power: 0.228 kW
Sound pressure level: 74 dB(A)
Voltage: 110 V – 1800 RPM
Rated current: 2.30 A
Gross weight: 6.5 kg
Plastic impeller

2-year warranty

2CC2504-1F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 499 mm / 20”
Airflow: 3.040 m³/s
Power: 0.858 kW
Sound pressure level: 78 dB(A)
Voltage: 110 V – 1800 RPM
Rated current: 7.40 A
Gross weight: 23 kg
Plastic impeller
2-year warranty

2CC2314-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 314 mm / 12”
Airflow: 0.731 m³/s
Power: 0.128 kW
Sound pressure level: 64 dB(A)
Voltage: 220/440 V – 1800 RPM
Rated current: 0.9/0.45 A
Gross weight: 5.25 kg
Plastic impeller
2-year warranty

2CC2354-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 350 mm / 14”
Airflow: 0.940 m³/s
Power: 0.148 kW
Sound pressure level: 64 dB(A)
Voltage: 220/440 V – 1800 RPM
Rated current: 1.0/0.5 A
Gross weight: 5.35 kg
Plastic impeller
2-year warranty

2CC2404-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 400 mm / 16”
Airflow: 1.430 m³/s
Power: 0.204 kW
Sound pressure level: 74 dB(A)
Voltage: 220/440 V – 1800 RPM
Rated current: 1.14/0.57 A
Gross weight: 6.5 kg
Plastic impeller
2-year warranty

2CC2504-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 499 mm / 20”
Airflow: 2.740 m³/s
Power: 0.814 kW
Sound pressure level: 78 dB(A)
Voltage: 220/440 V – 1800 RPM
Rated current: 3.00/1.50 A
Gross weight: 25 kg
Plastic impeller
2-year warranty

2CC2634-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 629 mm / 25”
Airflow: 5.310 m³/s
Power: 1.542 kW
Sound pressure level: 87 dB(A)
Voltage: 220/440 V – 1800 RPM
Rated current: 5.10/2.50 A
Gross weight: 29.5 kg
Plastic impeller
2-year warranty

2CC1714-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 709 mm / 28”
Airflow: 6.940 m³/s
Power: 3.775 kW
Sound pressure level: 91 dB(A)
Voltage: 220/440 V – 1800 RPM
Rated current: 13.5 / 6.75 A
Gross weight: 60.5 kg
Aluminum impeller
2-year warranty

2CC2506-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 499 mm / 20”
Airflow: 1.560 m³/s
Power: 0.275 kW
Sound pressure level: 68 dB(A)
Voltage: 220/440 V – 1,200 RPM
Rated current: 1.16/0.60 A
Gross weight: 26 kg
Plastic impeller
2-year warranty

2CC2636-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 629 mm / 25”
Airflow: 2.560 m³/s
Power: 0.541 kW
Sound pressure level: 76 dB(A)
Voltage: 220/440 V – 1086 RPM
Rated current: 2.02/1.01 A
Gross weight: 26 kg
Plastic impeller
2-year warranty

2CC2716-3F AXIAL VENT

Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.

Technical Specifications

Diameter: 709 mm / 28”
Airflow: 3.820 m³/s
Power: 0.856 kW
Sound pressure level: 80 dB(A)
Voltage: 220/440 V – 1,200 RPM
Rated current: 4.60/2.30 A
Gross weight: 30.5 kg
Plastic impeller
2-year warranty

Why install industrial and commercial ventilation solutions?

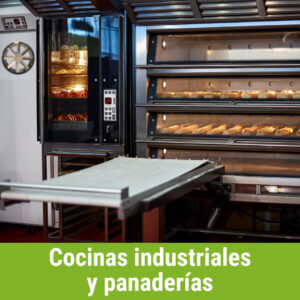

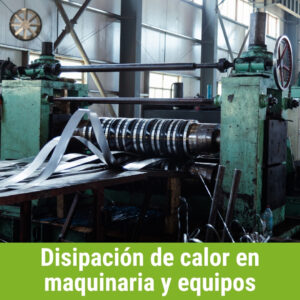

Ideal for industrial environments

General Features of Standard Ventilation

Axial fans are designed to move air in a straight line, that is, in a direction parallel to the fan’s axis.

The main feature of EnergINN fans is the aerodynamic design of their blade wheels, which allows them to move large volumes of air, making them an excellent option for improving air circulation in different spaces.

Our technology is designed to transform various environments, making them safer, healthier, and more productive.
