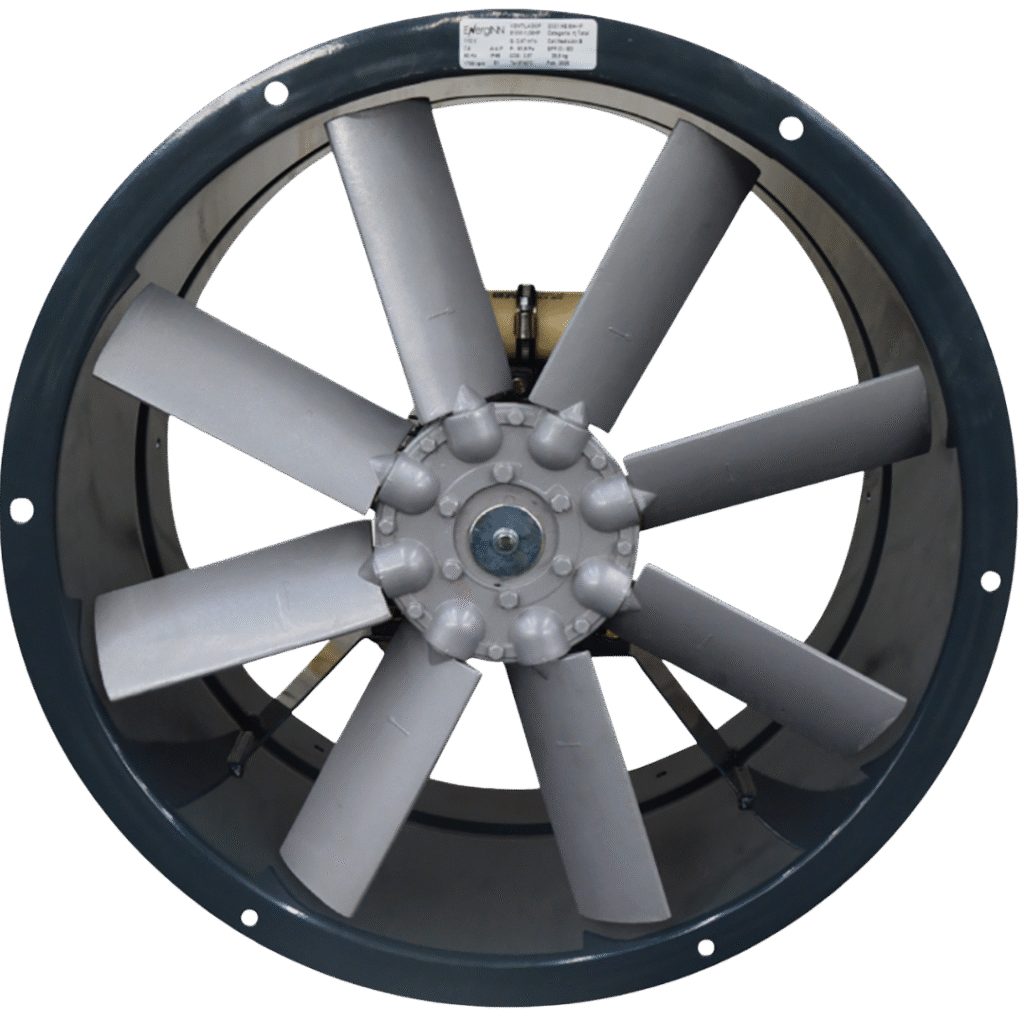

14” HE Axial Vent
Three-phase
Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.
Technical Specifications
Diameter: 354 mm / 14”
Airflow: 1.02 m³/s – 2,161 CFM
Power: 0.25 kW
Sound pressure level: 77 dB(A)
Voltage: 220 V / 440 V – 1,800 RPM
Rated current: 1.25 / 0.63 A
Gross weight: 13 kg
Aluminum impeller
IP65 protection – Three-phase motor with IE3 energy efficiency – High airflow
2-year warranty

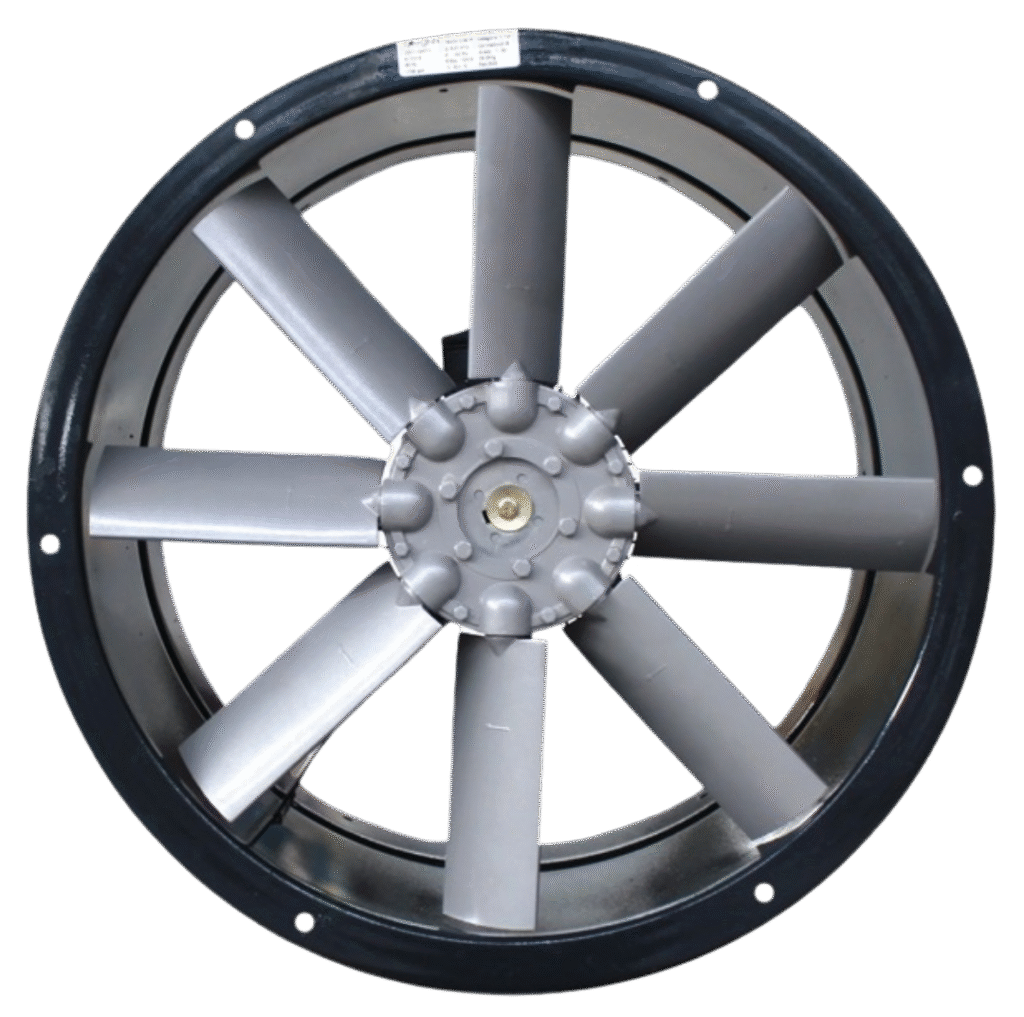

16” HE Axial Vent
Three-phase
Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.
Technical Specifications
Diameter: 399 mm / 16”
Airflow: 1.63 m³/s – 3,453 CFM
Power: 0.34 kW
Sound pressure level: 80 dB(A)
Voltage: 220 V / 440 V – 1,800 RPM
Rated current: 2.00 / 1.00 A
Gross weight: 19 kg
Aluminum impeller
IP65 protection – Three-phase motor with IE3 energy efficiency – High airflow
2-year warranty

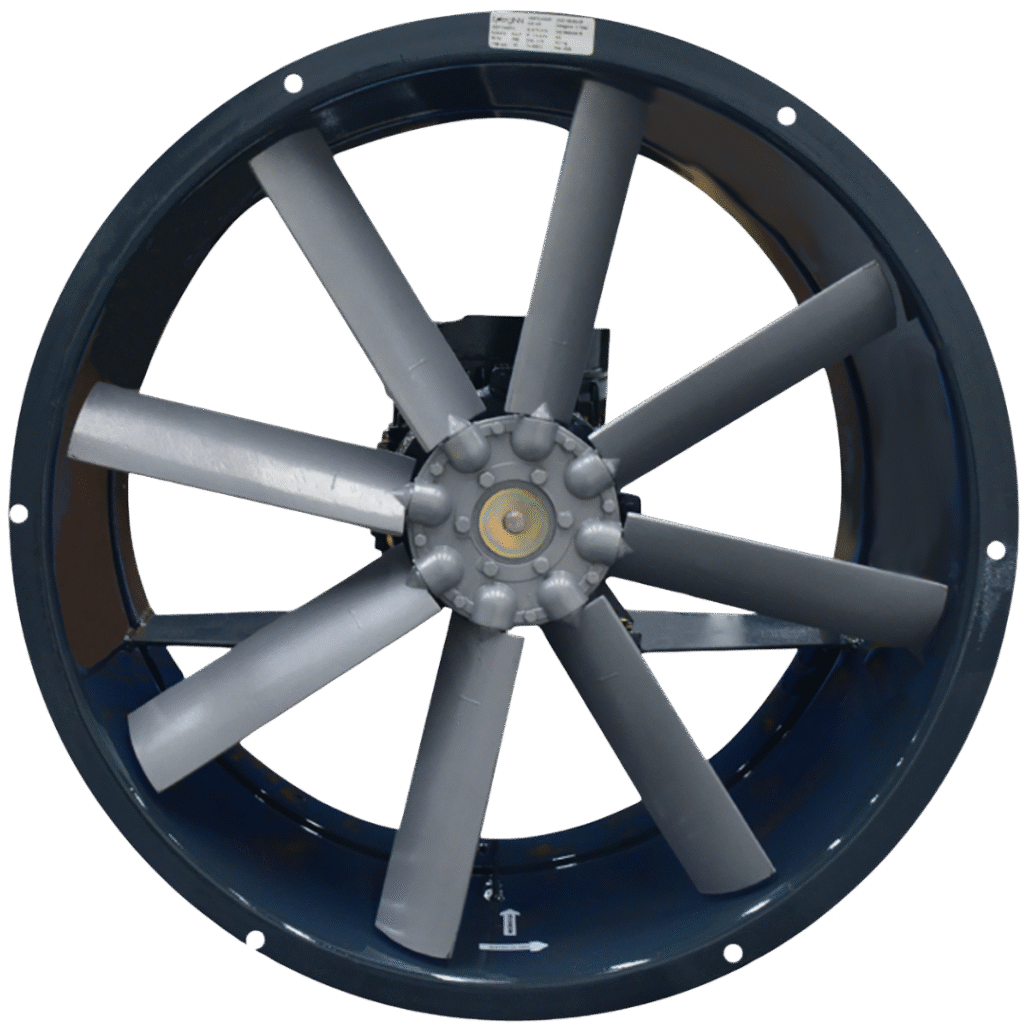

18” HE Axial Vent
Three-phase
Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.
Technical Specifications
Diameter: 457 mm / 18”
Airflow: 1.70 m³/s – 3,602 CFM
Power: 0.60 kW
Sound pressure level: 83 dB(A)
Voltage: 220 V / 440 V – 1,800 RPM
Rated current: 3.6 / 1.8 A
Gross weight: 26 kg
Aluminum impeller – IP65 protection – Three-phase motor with IE3 energy efficiency – High airflow
2-year warranty

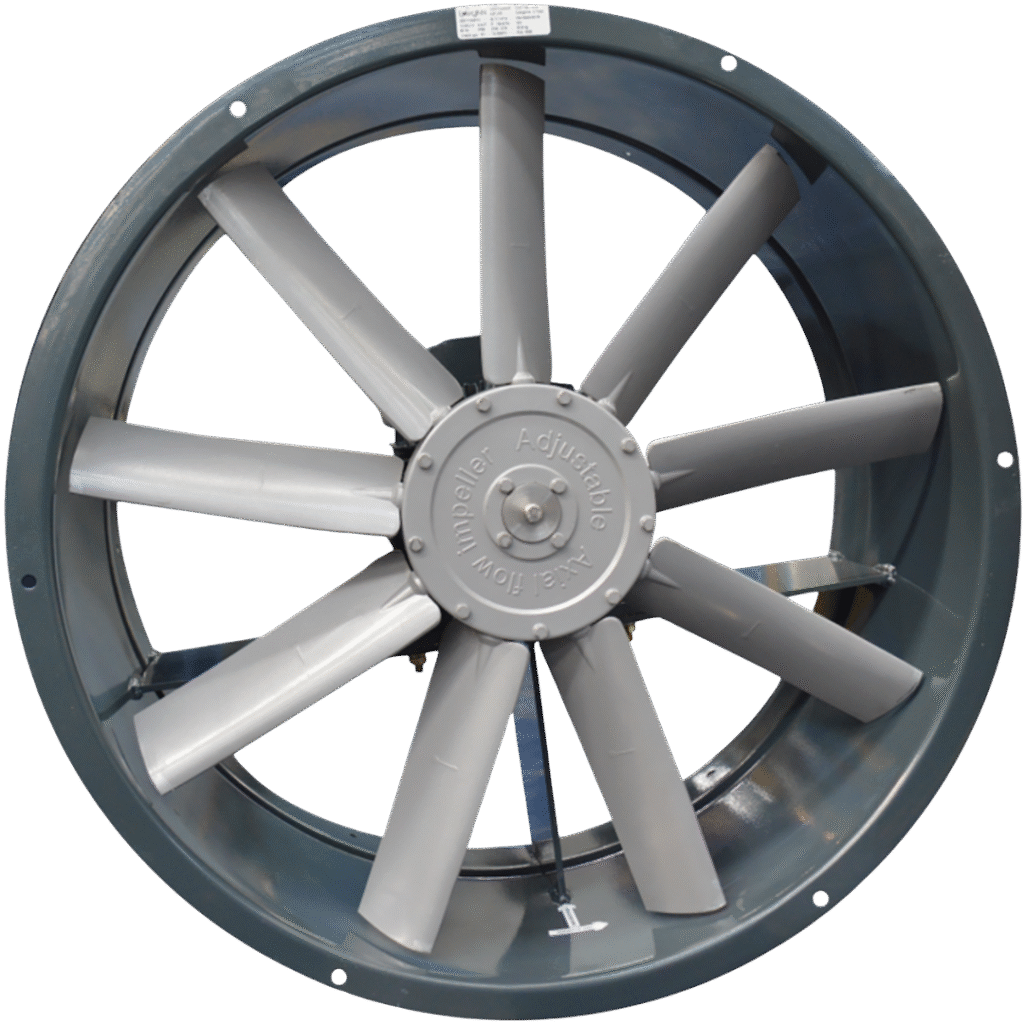

20” HE Axial Vent
Single-phase
Supply or exhaust function.
Suitable for transporting air, gases, and particulate matter.
Technical Specifications
Diameter: 499 mm / 20”
Airflow: 2.47 m³/s – 5,233 CFM
Power: 0.81 kW
Sound pressure level: 85.0 dB(A)
Voltage: 110 V – 1,800 RPM
Rated current: 7.6 A
Gross weight: 28.5 kg
Aluminum impeller – IP65 protection – High airflow
2-year warranty
